3.2 Install On A Pole

Last updated 1 year ago

Was this helpful?

Find a pole with Ø35~50mm diameter. The pole is not included in the package. The typical installation is on a vertical pole. You can also install it horizontally.

L-Shape Bracket

The M6 cross-head screws are fixed on the backside of the router. Take them off and use the cross end on the T-wrench to install the L-shape bracket on the backside of the router.

Turn the bracket to be parallel with the pole if it's horizontal. The router antennas should keep in the vertical direction.

Bolts & Holders

  1. Clasp the pole with the U-bolts and holders.

  2. Attach them on either side of the L-shape bracket.

  3. On another side of the bracket, put washers, spring washers, and hex nuts on U-bolts.

  4. Use an M10 spanner to turn the hex nut and tighten the bracket on the pole.

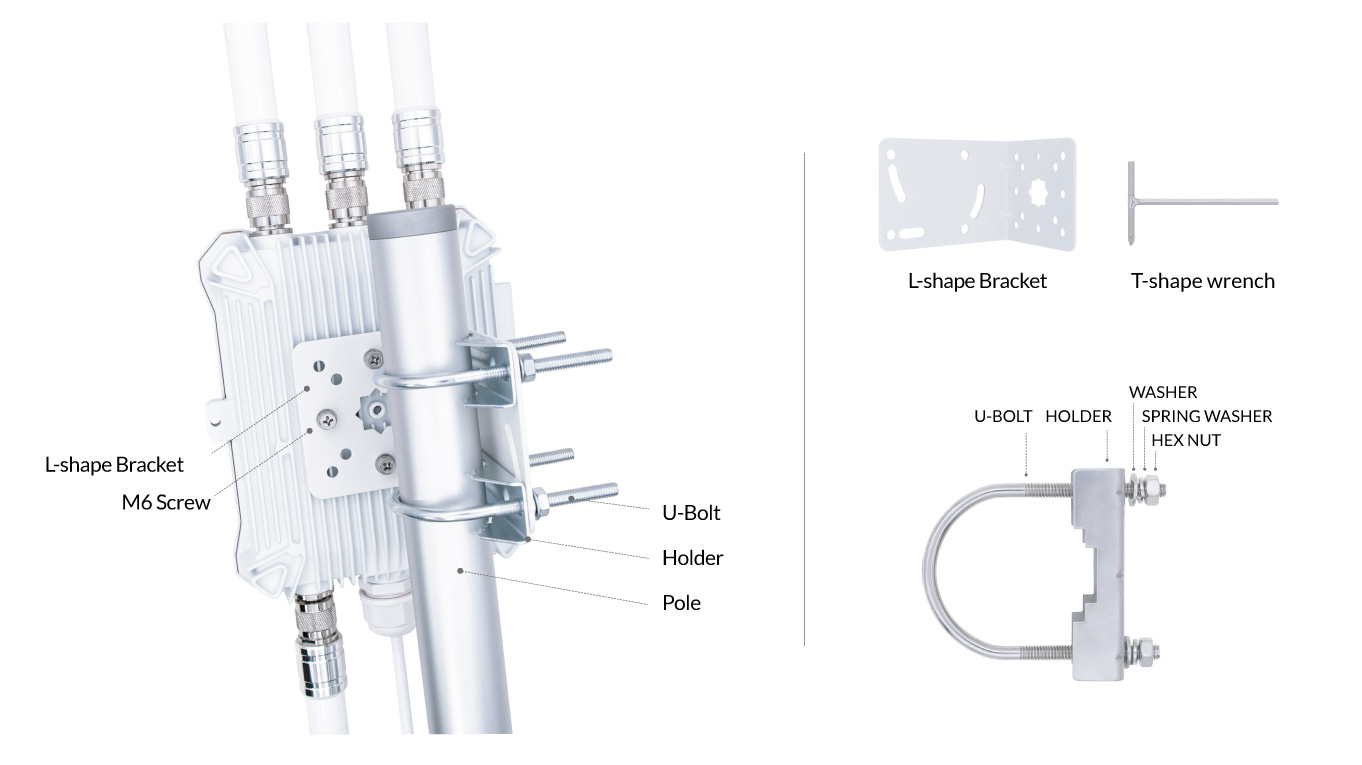

Please refer to the above image of the installation on a vertical pole. Feel free to contact us if you have any questions about the installation.

EZR34T-5G - Vertical Pole Installation
