# 4.3 Wi-Fi Hotspots

## Wireless Overview <a href="#overview" id="overview"></a>

After accessing the router admin panel, go to ***"Network > Wireless"*** to check the Wi-Fi status.&#x20;

* **Ra0 - MT7615E 802.11bgn** is the 2.4GHz WiFi module\
  SSID: Outdoor-WiFi-xxxx-V4 is the 2.4GHz hotspot
* **Rax0 - MT7615E 802.11anac** is the 5.8GHz WiFi module\
  SSID: Outdoor-WiFi-xxxx-V5 is the 5.8GHz hotspot&#x20;
* **SSID | Mode: Client** -- is the Wi-Fi relay connection. \
  It's not visible until the Wi-Fi relay is set up.
* **Associated Stations** are the active Wi-Fi networks and their working status.

You can turn off both the client and master SSID by clicking the "Disable" button and reactivate them by clicking the "**Enable**" button.

<figure><img src="https://1932693109-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F3ZDPQKBTk57hpVCPxhSu%2Fuploads%2FFVzwofqQti9AgZfZg6mS%2F5G-CPE_WiFi-Hotspots-Wireless-Overview.png?alt=media&#x26;token=61956479-a4e2-4450-a73d-2371cedfe096" alt=""><figcaption><p>WiFi Hotspots - Wireless Overview Page</p></figcaption></figure>

***

## Edit Wi-Fi Hotspot

On the above wireless overview page of "System > Wireless." Click the **"Edit"** button on the row of related SSID to enter their configuration page.

### i. Basic Wi-Fi Settings <a href="#basic" id="basic"></a>

In the Device Configuration section, in the General Setup tab, you can monitor the network status and configure Wi-Fi operating Mode, Channel, Bandwidth, and Transmit Power.&#x20;

Suggest using default settings unless there is a conflict.

{% hint style="info" %}
After connecting to a Wi-Fi relay, the Wi-Fi master SSID's Mode, Channel, and Width will be locked to the same settings as the connected Wi-Fi relay network.
{% endhint %}

{% hint style="warning" %}
If other 2.4GHz Wi-Fi hotspots are nearby, do not use 40MHz on "Width," and do not turn on "Force 40MHz mode" on the advanced settings.
{% endhint %}

### ii. Wi-Fi Country Code <a href="#country" id="country"></a>

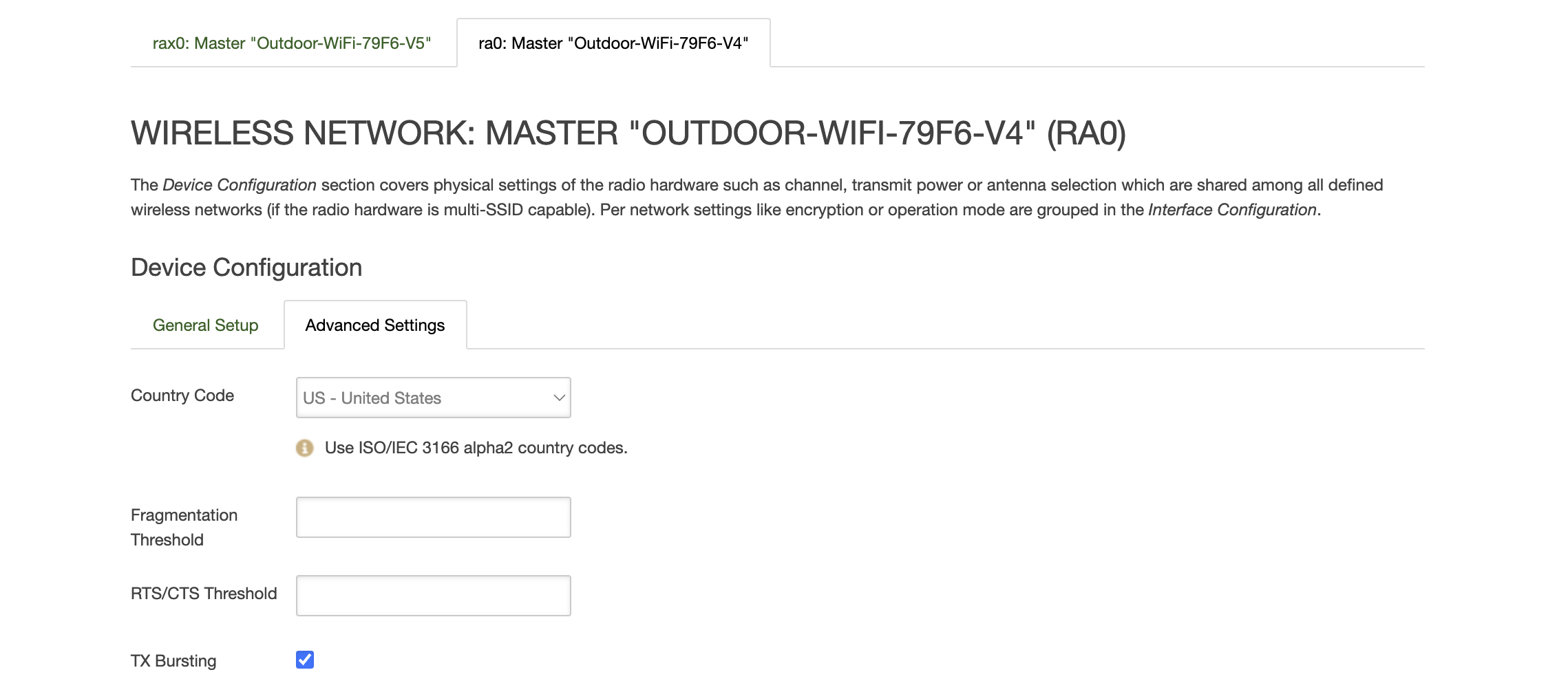

In **Device Configuration**, click **Advanced Settings**, check the Country Code field, and select the corresponding country code.&#x20;

It is essential to ensure the Wi-Fi hotspot on your router meets the legal regulations in your country. The other configured Wi-Fi networks will use the same device settings.

<figure><img src="https://1932693109-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F3ZDPQKBTk57hpVCPxhSu%2Fuploads%2FRw2DTfKpXEU1KihAVgaK%2F5G-CPE_Wireless-WiFi-Hotspot-Advanced-Settings.png?alt=media&#x26;token=59fd52a4-8b0b-41d5-b111-6b0c0a479cb9" alt=""><figcaption><p>WiFi Hotspot Advanced Settings and WiFi Country Code</p></figcaption></figure>

### iii. Wi-Fi SSID & Password <a href="#password" id="password"></a>

In the **Interface Configuration** section, click the **General Setup** tab. You can edit the Wi-Fi hotspot's name on the **ESSID** field.

Click the **Wireless Security** tab to enter the encryption section and configure the Wi-Fi password.

* **Encryption:** Select an encryption method. The last option, *"WPA-PSK/WPA2-PSK Mixed Mode,"* is recommended for home and small office networks.
* **Cipher:** The *"Auto"* option is recommended.
* The **Key** is the Wi-Fi password. Input your password without space. Special characters are supported. The minimum length is eight characters.\
  \* Do not leave it empty after choosing the encryption type.
* Other default settings are qualified for general usage.

<figure><img src="https://1340417500-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-LvFoPQjE_9d9UfSmbIn%2F-LwwJWOA77mzdYoetBxZ%2F-LwwQQgGTh7gYM7jGjAP%2FEV3104-4.4.2-WiFi-Config-SSID-Password.jpg?alt=media&#x26;token=c49f4ffa-90f1-4775-a458-bc461174e286" alt=""><figcaption><p>WiFi Hotspot SSID and Encyption Settings</p></figcaption></figure>

**Remarks:**

Enable the checkbox **Hide ESSID**, and the router will stop broadcasting the Wi-Fi hotspot but maintain the Wi-Fi connection when manually entering the Wi-Fi hotspot name and password.

**WMM**, *Wi-Fi Multimedia*, is an automated way of handling Quality of Service (QoS) on the Wi-Fi network that provides improved video and voice performance over the wireless network.

{% embed url="<https://www.youtube.com/watch?v=KA6R2cHAOjs>" %}
EZR34T - How to Set WiFi Hotspot & Router Password
{% endembed %}

***

## Wi-Fi Coverage

For better outdoor WiFi coverage, suggest installing the router in an open space with the fewest barriers nearby. To cover indoor spaces, you can install the router near windows or doors.

You can also use an indoor router and link to the LAN port on the PoE injector.

***

## Wi-Fi Relay (Repeater)

You can connect the outdoor router to an existing WiFi network. The outdoor router will obtain internet connectivity through the linked hotspot and broadcast the signal to extend the coverage range.&#x20;

Please check the step-by-step tutorial on setting up a Wi-Fi relay.\
<https://how.router.works/net/wifi/relay>

***

## Guest Wi-Fi

A guest WiFi hotspot can provide visitors with internet access without compromising the main network's security. Enabling a guest WiFi hotspot to provide internet access to guests and add a security layer by keeping guest devices separate from the master network.

Please check the step-by-step tutorials on setting up Guest WiFi hotspots.\
<https://how.router.works/net/wifi/guest-wifi>


---
